Arduino Arduino GIGA Display Shield
Arduino Arduino GIGA Display Shield thumbnail

EAN 7630049203419

EDIT PRODUCT

Arduino Arduino GIGA Display Shield

(Write a Review)
Barcode Formats: EAN-13 7630049203419
Manufacturer: Arduino

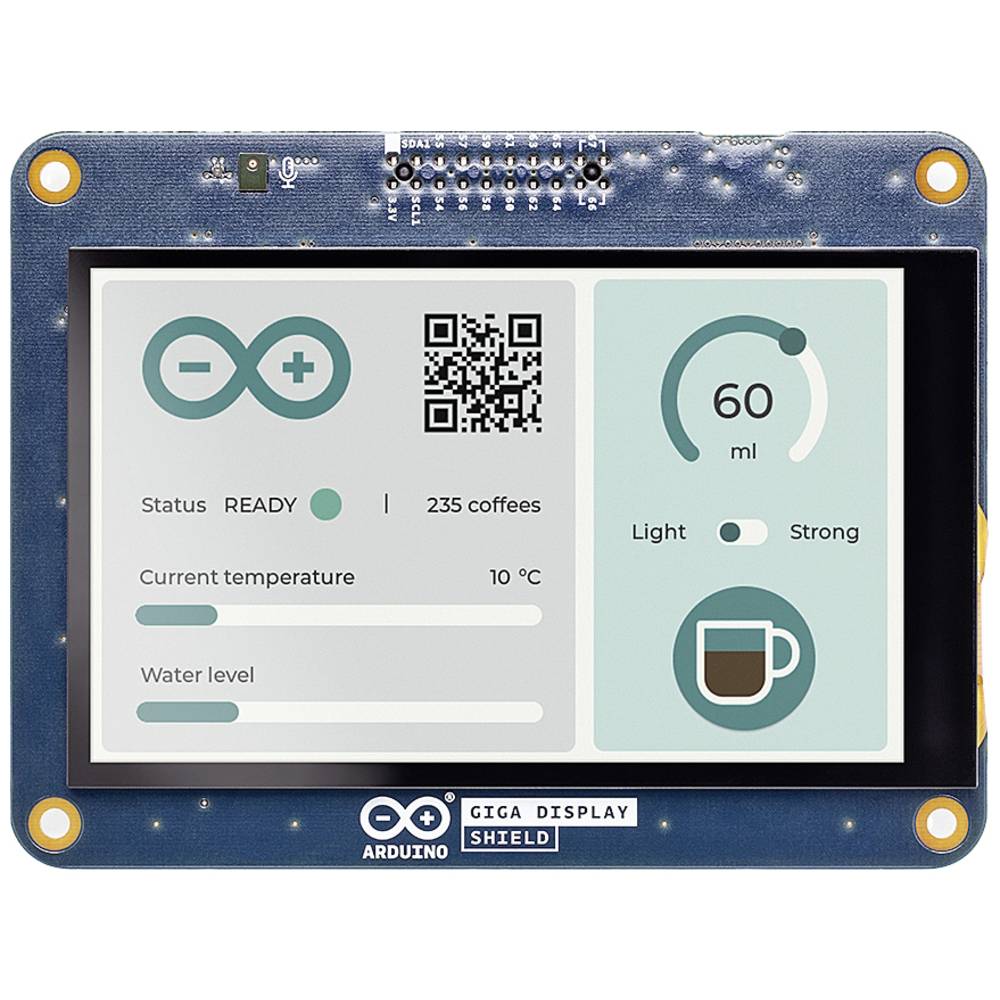

Description:   ASX00039 is an Arduino® GIGA display shield. It is an easy way to add a touchscreen display with orientation detection to user Arduino GIGA R1 Wi-Fi (from now on referred to as GIGA R1 Wi-Fi) board. It has no microcontroller and cannot be programmed inde KD040WVFID026-01-C025A 3.97" TFT display, 480x800 resolution, 0.108mm pixel size BMI270 6-axis IMU (accelerometer and gyroscope), 16-bit SMLP34RGB2W3 RGB LED, common anode, IS31FL3197-QFLS2-TR driver with integrated charge pump MP34DT06JTR digital microphone, 64dB signal-to-noise ratio, -26dBFS ±3dB sensitivity GIGA connector, 2.54mm camera connector Input voltage from VIN header is 7V typical Input high-level voltage is 3.3V maximum Input low-level voltage is 1V maximum Operating temperature range from -20 to +70°C.
Attributes:
  • MPN: ASX00039
  • Model: ASX00039
