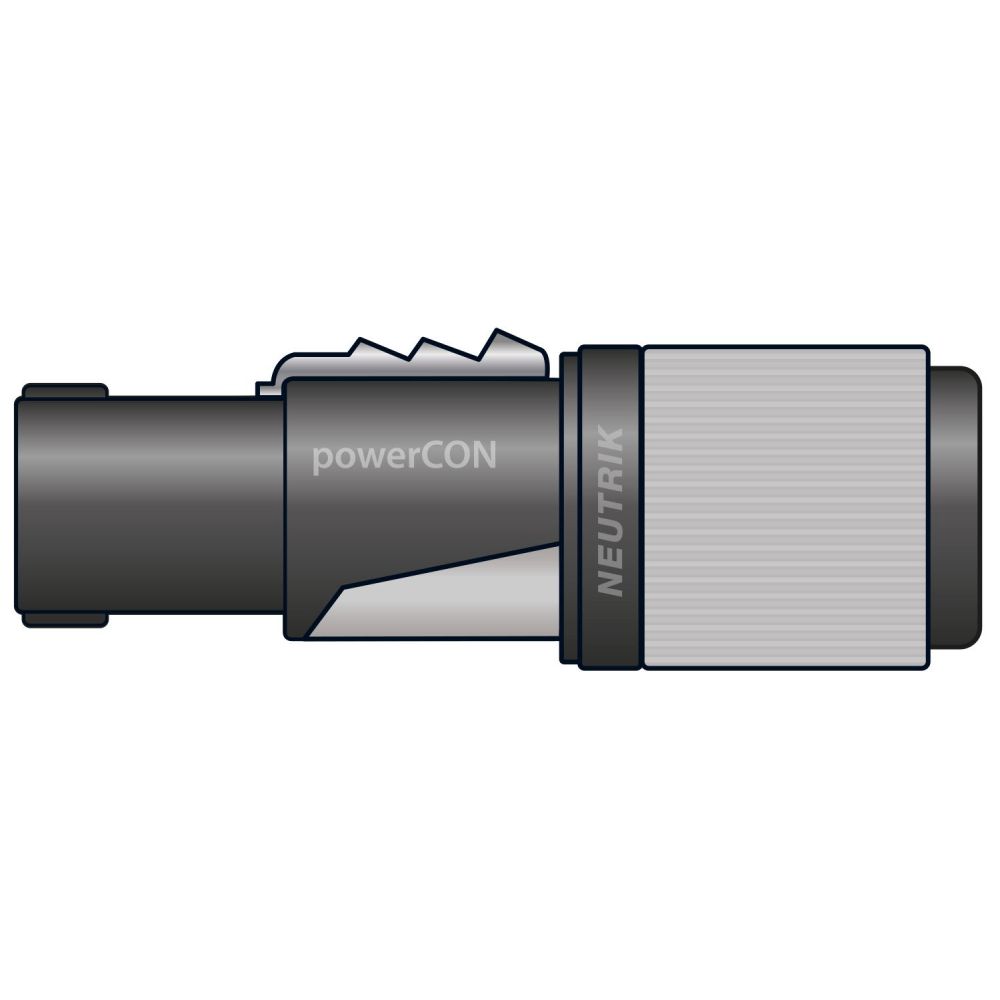

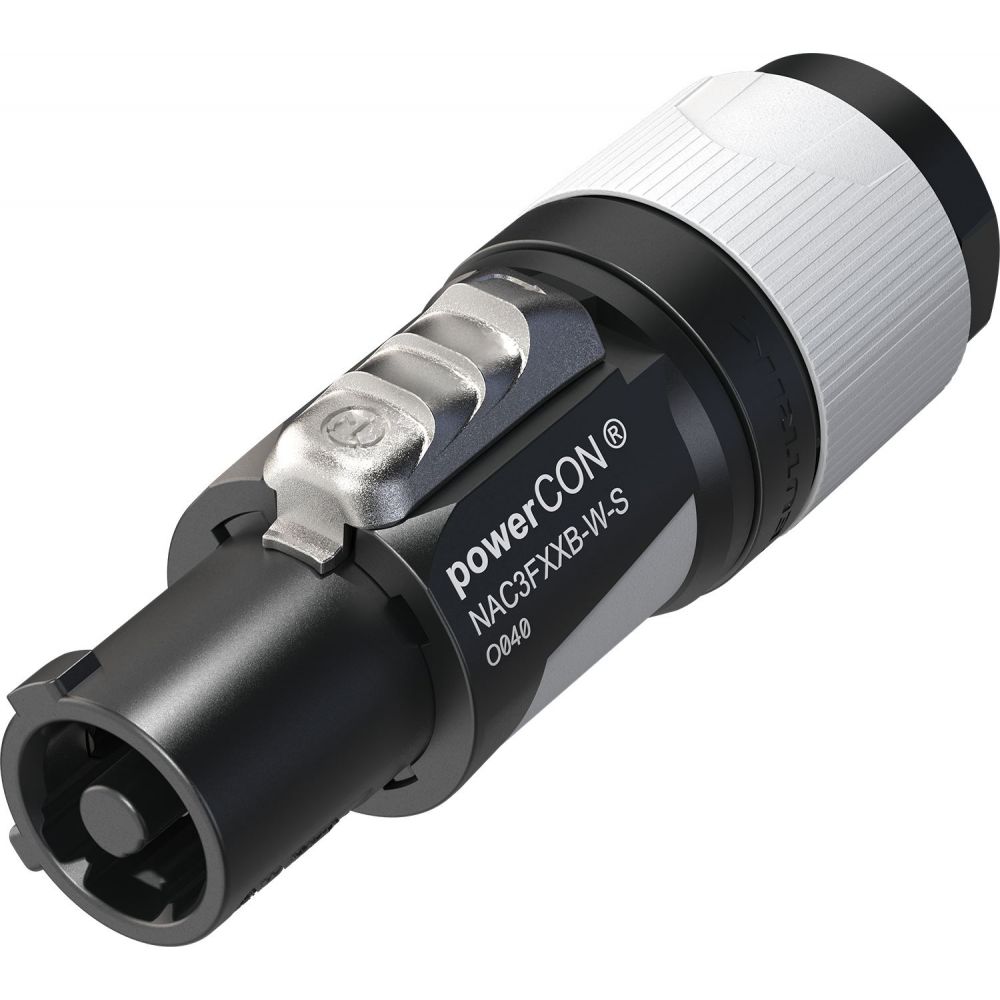

Neutrik® NAC3FXXB-W-S Powercon Connector Cable 6-12mm
Neutrik® NAC3FXXB-W-S Powercon Connector Cable 6-12mm thumbnail
Neutrik® NAC3FXXB-W-S Powercon Connector Cable 6-12mm thumbnail

EAN 7613187017698

EDIT PRODUCT

Neutrik® NAC3FXXB-W-S Powercon Connector Cable 6-12mm

(Write a Review)
Barcode Formats: EAN-13 7613187017698
Manufacturer: Neutrik
Description:   Neutrik® NAC3FXX Powercon ConnectorsLocking AC mains cable connector, keyed and colour coded for power-out, screw terminal assembly, for cable diameters 6-12mm and 10-16mm. The powercon FXXA/FXXB is a single phase (3 conductor) lockable power connector with Circuit Breaking Capability when mated with powercon XX Series receptacles. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed to guarantee a safe power connection.DetailsContact resistance ? 2 m?Lifetime Typically 5’000 mating cyclesTerminals Screw typeTemperature range -33 °C to + 80 °CIP rating IP20.
Attributes:
  • MPN: NAC3FXXB-W-S
  • Model: NAC3FXXB-W-S
