Particles Plus 8306 Handheld Particle Counter

(Write a Review)
Barcode Formats: UPC-A 647627461151, EAN-13 0647627461151
Category: Tools > Measuring Tools & Sensors > Air Quality Meters
Manufacturer: Particles Plus, Inc.

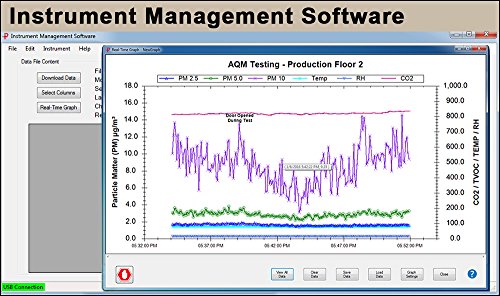

Description:   The Particles Plus 8306 Handheld Particle Counter measures 0.3 ?m to 25.0 ?m with a flow rate of 0.1 CFM (2.83 LPM). Easy to configure, this instrument displays up to 6 user-selectable size channels as well as temperature and relative humidity. View data and generate ISO 14644-1, EU GMP Annex 1 or FS 209E reports. Export to Particles Plus data-software. The 8306 also has a mass concentration mode that approximates density in ?g/m³. The 8306 ensures compliance with an on-board pulse height analyzer. Features and Benefits:Measures 0.3 ?m to 25.0 ?m 0.1 CFM (2.83 LPM) flow rate Long life laser diode technology Measures up to 6 channels of simultaneous dataApproximates mass concentration in ?g/m³Integrated handle for one-handed operationLarge easy-to-use icon driven color touch screen display(Optional) temperature and relative humidity probeStores up to 45,000 sample records, 1,000 sample locations and 50 recipesIP Addressable connectivity provides online access for control and monitoring through multiple connection options on most smart devicesEasy configuration and transferable from instrument to instrumentConnect using USB, Ethernet, or (optional) Wireless 802.11 b/g, RS485 or RS232Displays reports for ISO 14644-1, EU GMP Annex 1 and FS 209EInternal audible alarmUser-definable reportsUser-selectable channel sizesComplies with ISO 21501-4 and JIS B9921 standards. CE CertifiedLightweight high-impact injection molded plastic enclosure2 year limited warranty. Extended warranties availableStandard Accessories: Quick start guide, operating manual on USB flash drive, isokinetic probe, temperature relative humidity sensor, purge filter, battery, data download software, USB cable, power supply & cable.
Features:
  • Advanced patented multi-processing 6 channel particle counter, dynamic range from 0.3 to 25µm particle range with user adjustable custom channel size capability

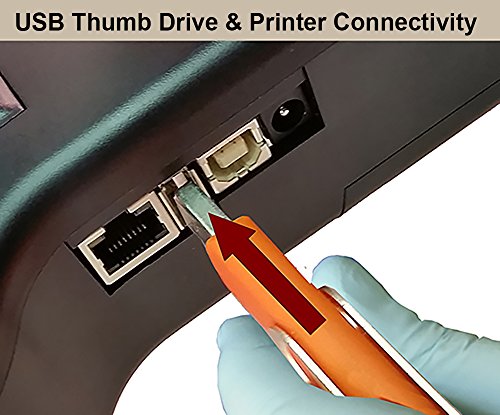

  • 45,000 data records storage, with patented annotation function allows for a 32 character notation per sample record. Records are downloadable to a USB memory stick or directly to a PC

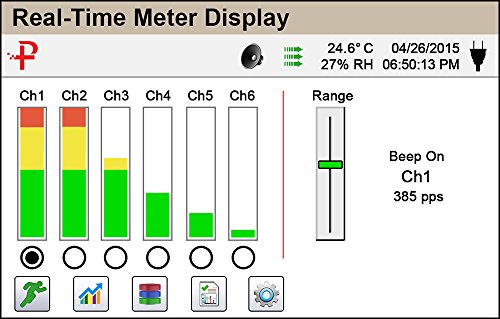

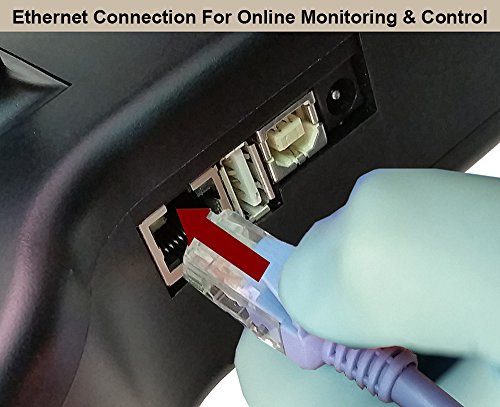

  • Patented Real-Time Meter function visually and audibly pinpoints particle contamination source. IP addressable instruments allow for web browser based monitoring and control
  • 4.3" color touch screen display is the largest of any handheld particle counter. Utilizes easy-to-use icon driven menus
  • Mass concentration mode indicates in µg/m³, provides density corrections and refractive index input for tighter accuracy. Onboard Pulse Height Analyzer ensures accuracy and reliability of counts
Attributes:
  • MPN: Hh-8306-1
  • Model: Hh-8306-1
  • ASIN: B01FXP9EMG
  • Color: black
  • Weight: 220
