Z-wave.me ZMEERAZ2 Development Board Accessory Green
Z-wave.me ZMEERAZ2 Development Board Accessory Green thumbnail

EAN 4251295700939

EDIT PRODUCT

Z-wave.me ZMEERAZ2 Development Board Accessory Green

(Write a Review)
Barcode Formats: EAN-13 4251295700939
Category: Hobbies & Creative Arts > Musical Instruments > Electronic Musical Instruments > MIDI Controllers
Manufacturer: Z-Wave ME

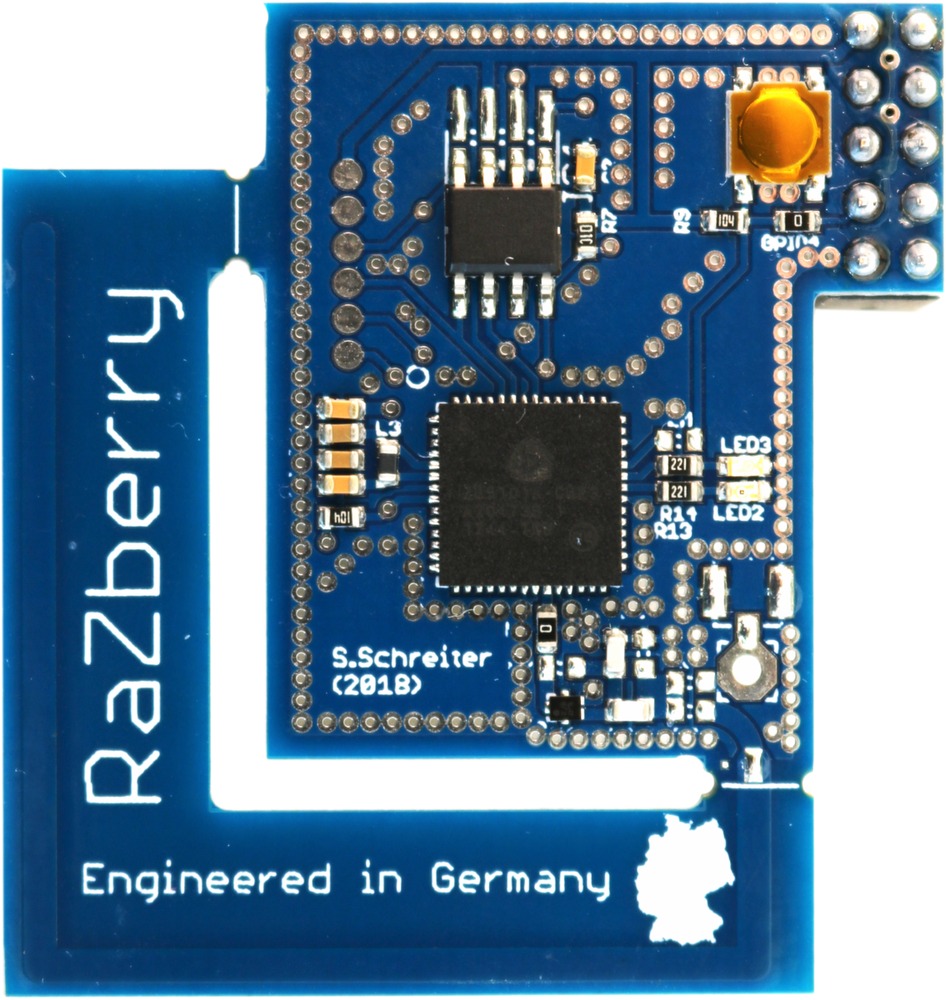

Description:   ,The RaZberry is a tiny daughter card that sits on top of the Raspberry PI GPIO connector not blocking the USB boards. It is powered by the Raspberry PI board with 3.3 V and communicates using UART TTL signals (RX/TX). RaZberry is compatible with all models of Raspberry Pi. The daughter card hosts a Sigma Designs ZM5101 Z-Wave transceiver module (a so called 5th generation Z-Wave module), an external 32 K SPI flash for network data and a PCBA antenna. Additionally two LEDs are used to indicate certain status of the Z-Wave controller chip. Beside the PCBA antenna there is an option to solder a U.FL connector for external SMA antenna. The power consumption of the board is typically 18 mA at 3.3 V but can peak up to 40 mA when the chip is transmitting. RaZberry supports Z-Wave Security S2 and Smart Start technologies. Compared to the standard firmware design used by almost all Z-Wave transceiver hardware, the RaZberry Shield firmware offers several extensions and enhancements: - Backup and recovery function including network topology - Optimised transmitting queue handling to speed up transmitting process - Firmware update from the OS level in the field - Trusted Platform module applying strong encryption - Extended Wakeup Notification to extend battery life time of battery-operated devices in the network - Advanced statistics about network actual usage - Allows switching frequencies from software RaZberry comes with Z-Way software, but it is also compatible with all third party software that uses Z-Wave Serial API. There are firmwares for static controller (for Z-Way and most of third party software) or bridge (for Z/IP).,z-wave.me ZMEERAZ2 development board accessory Green.
Attributes:
  • MPN: sku
  • Weight: 10.0000
Product Reviews WRITE A REVIEW

No reviews posted yet.

Online Stores
ADD STORE

Sponsored affiliate online retailers for EAN 4251295700939:

  1. getgoods DE: $7.49
  2. Conrad DK: DKK 469.00
  3. Conrad SE: SEK 690.00
