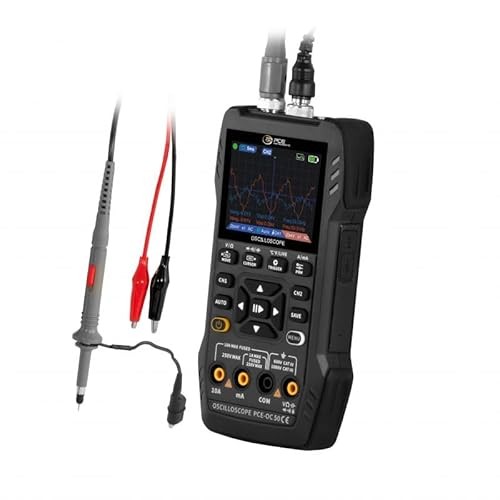

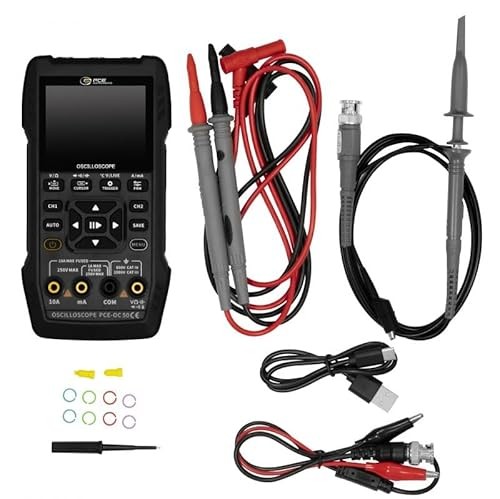

Oscilloscope PCE-OC 50

(Write a Review)

Barcode Formats: EAN-13 4250348736840

Manufacturer: PCE Instruments

BARCODE (EAN)

Integrate your app with a UPC, EAN and ISBN database

Description: This innovative 3-in-1 Oscilloscope is the perfect combination of a powerful Oscilloscope a versatile multimeter and a signal generator. It has been specially developed for electronics technicians engineers and hobby users who are looking for a compact versatile and user-friendly device to carry out their measurement tasks efficiently. The 2-channel Oscilloscope offers a bandwidth of 10 MHz and a sampling rate of 50 MS/s which enables signals to be reliably recorded and analysed. Whether troubleshooting circuits observing waveforms or analysing transients this Oscilloscope delivers clear and precise results. Thanks to its high resolution and simple operation even complex signal curves can be easily visualised. The Oscilloscope image can be saved to the internal memory as a screenshot and transferred to a computer via the USB-C interface. The device also has extensive multimeter functions that cover a wide range of measurements. These include voltage measurements (DC and AC voltage) current measurements (DC and AC current) resistance measurements capacitance measurements and diode test. Another practical feature is the integrated non-contact voltage detection which allows you to reliably detect live wires. The signal generator ideally complements the device by generating signals within a range of 1 Hz to 2 MHz. It supports various signal shapes such as sine square triangle half wave full wave noise and DC signals. This function makes the Oscilloscope particularly useful for tests simulations and the development of circuits. Thanks to its compact design and the combination of Oscilloscope multimeter and signal generator this device is an indispensable tool for anyone who values efficiency and precision when working with electronics.

Features:

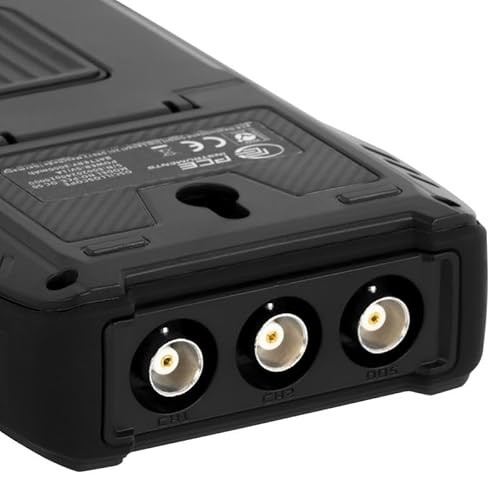

VERSATILE 3-IN-1 DESIGN: Features a 2-channel oscilloscope with 10 MHz bandwidth, digital multimeter for voltage/current/resistance measurements, and signal generator in one compact device
ADVANCED OSCILLOSCOPE: Delivers 50 MS/s sampling rate with 32k points memory depth, supporting vertical sensitivity from 20 mV/div to 10 V/div for precise waveform analysis

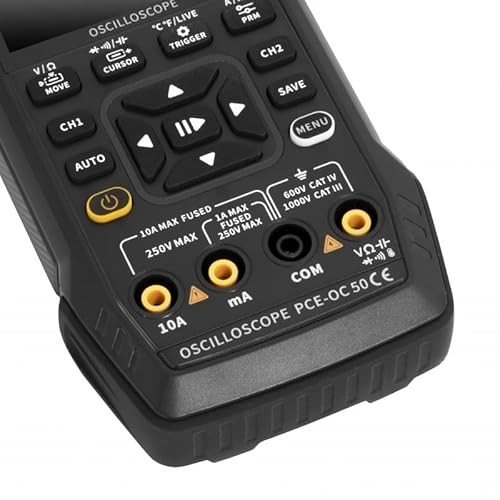

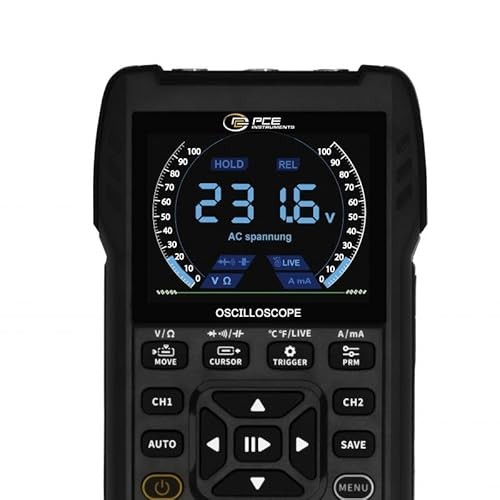

COMPREHENSIVE MULTIMETER: Measures DC/AC voltage up to 1000V, current up to 10A, resistance up to 100 MΩ, capacitance, temperature, and includes diode test functionality

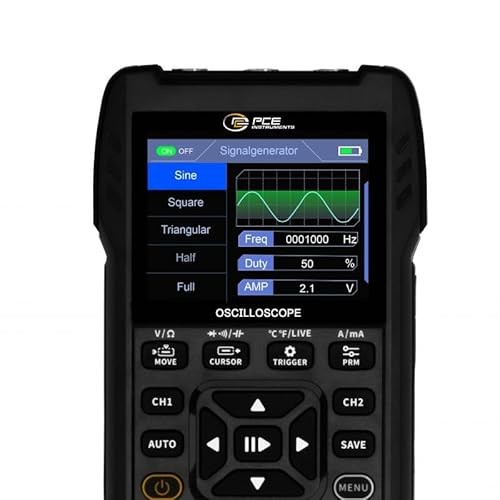

SIGNAL GENERATOR: Produces 6 waveform types from 1 Hz to 2 MHz with adjustable amplitude, perfect for circuit testing and development

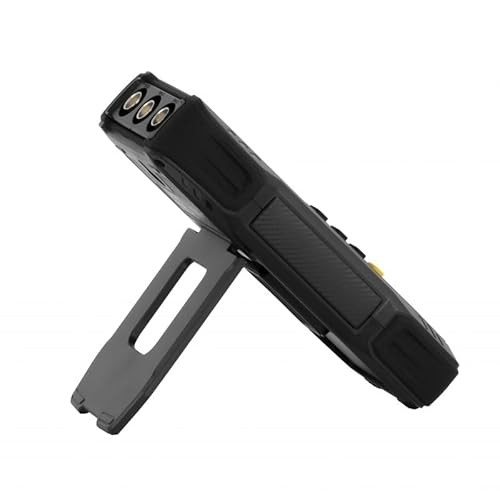

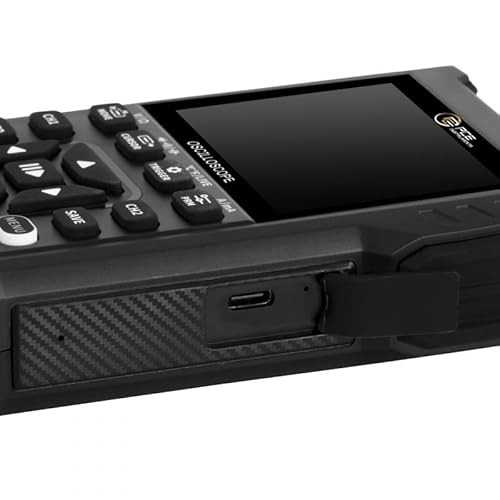

PORTABLE DESIGN: Features 2.8-inch color display, 6-hour rechargeable battery life, USB-C interface, and weighs just 10.6 ounces in a compact 6.7 x 3.5 x 1.4 inch housing

Attributes:

MPN: PCE-OC 50
ASIN: B0FXYFKMMJ
