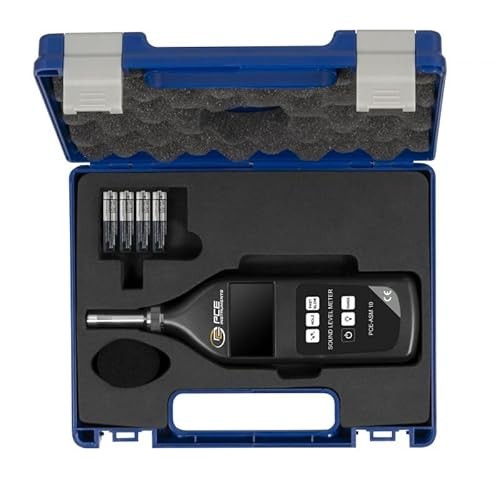

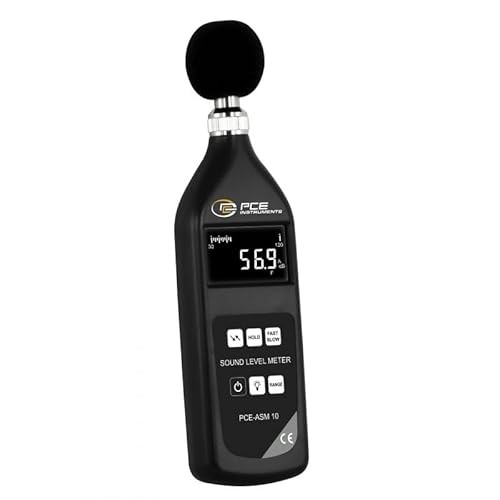

Condition Monitoring Sound Level Meter PCE-ASM 10

(Write a Review)
Barcode Formats: EAN-13 4250348733252
Manufacturer: PCE Instruments
Description:   Our Condition Monitoring Sound Level Meter is a versatile device that measures and evaluates the sound level time-dependently. The Condition Monitoring Sound Level Meter offers three manual measurement ranges: 20.. 90 dB 40.. 110 dB and 60.. 130 dB with a resolution of 0.1 dB. Frequency weightings A C or Z can be selected in the device. The frequency range of the device is between 20 and 8000 Hz and the Condition Monitoring Sound Level Meter also has a key for selecting the time weighting between fast and slow. The Condition Monitoring Sound Level Meter is powered by four AAA batteries but can also be operated via an external 6 V power supply which offers the advantage of flexible and mobile use and also enables longer measurement times. The measurement results are displayed either as numerical values or as a bar graph on a 2.2-inch LCD screen. Our Condition Monitoring Sound Level Meter has measurement functions such as HOLD and MAX and is equipped with a condenser microphone. The device complies with the standards JJG 188-2017 and IEC 61672-1 (class II) as well as GB/T3785.2-2010. The Condition Monitoring Sound Level Meter is used to measure loudness in various environments e. g. to monitor ambient noise in cities industrial areas or in the workplace to comply with noise regulations. It is also used in building acoustics as well as at events and in music production to assess sound insulation and sound quality. In industry it is used in product testing to check the noise emission of machines.
Features:
  • MEASUREMENT RANGE: Features three adjustable ranges (20-90 dB, 40-110 dB, 60-130 dB) with high accuracy of ±1.5 dB and 0.1 dB resolution for precise sound level monitoring
  • FREQUENCY CAPABILITIES: Covers frequency range of 20-8000 Hz with selectable A, C, and Z frequency weightings, plus fast (125ms) and slow (1s) time weighting options

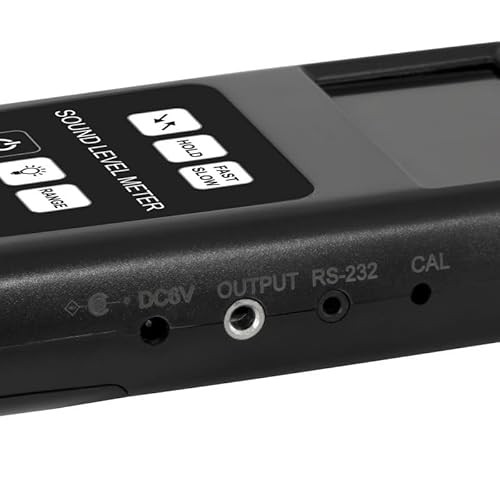

  • DISPLAY & INTERFACE: 2.2-inch LCD screen with adjustable backlight displays numerical values and bar graphs, includes RS232 interface for data transfer
  • VERSATILE POWER: Operates on 4 AAA batteries or 6V DC power supply for extended measurement sessions, suitable for both portable and stationary use

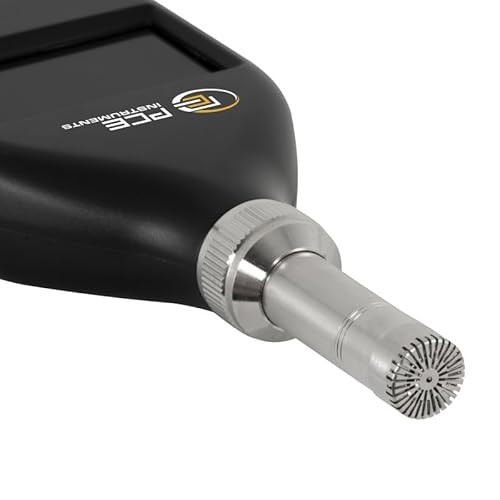

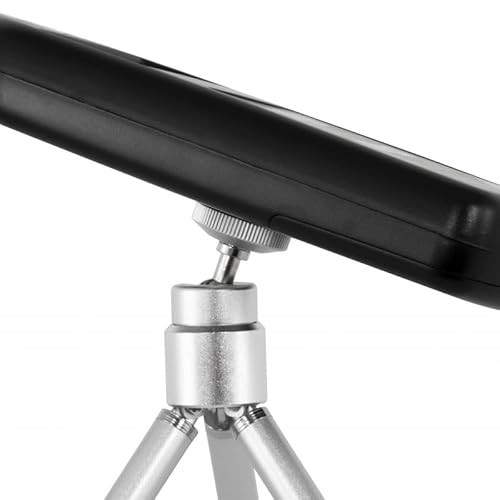

  • PROFESSIONAL FEATURES: Includes HOLD and MAX measurement functions, condenser microphone, AC analog output, and 3/8-inch tripod thread for stable mounting
Attributes:
  • MPN: PCE-ASM 10
  • ASIN: B0FXY6SZ5L
