PCE Instruments High-Precision Profilometer (PCE-RT 2000)
PCE Instruments High-Precision Profilometer (PCE-RT 2000) thumbnail

EAN 4250348717528

EDIT PRODUCT

PCE Instruments High-Precision Profilometer (PCE-RT 2000)

(Write a Review)
Barcode Formats: EAN-13 4250348717528
Category: Hobbies & Creative Arts > Musical Instruments > Electronic Musical Instruments > MIDI Controllers
Manufacturer: PCE INSTRUMENTS

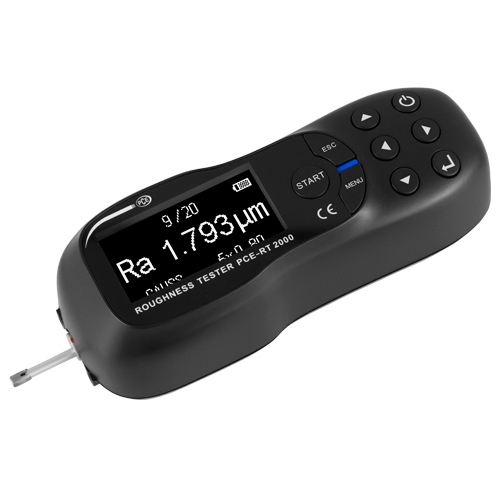

Description:   PCE Instruments Profilometer (PCE-RT 2000) is a versatile device for accurate surface roughness measurement. This high-performance profilometer is equipped with an OLED display, a micro USB interface, and a rechargeable Li-ion battery, making it ideal for both laboratory and industrial applications. The device measures roughness parameters including Ra, Rq, Rsm, Rsk, Rz, Rt, Rp, Rv, and Rc, ensuring precise evaluations for quality control. With its intuitive software, real-time graphical representation, and automatic data storage, this profilometer simplifies roughness analysis for various surfaces. . Specifications and Dimensions Measurement Parameters: Ra, Rq, Rsm, Rsk, Rz, Rt, Rp, Rv, Rc; Measuring Range (Ra, Rq, Rc): 0.005 m.. 16 m; Measuring Range (Rz, Rt, Rp, Rv): 0.02 m.. 200 m; Measuring Range (Rsm): 5 m.. 1000 m; Measuring Range (Rsk): -1.. 1; Stylus Tip Radius: 5 m; Stylus Tip Material: Diamond (90 angle); Max. Recommended Static Measurement Force: 4 mN (0.4 gf); Measuring Principle: Inductive; Radius Longitudinal Guide Bar: 45 mm / 1.8 in; Maximum Driving Distance: 15 mm / 0.6 in; Cut-Off Wavelengths: 0.135 mm/s at 0.25 mm cut-off; 0.5 mm/s at 0.8 mm cut-off; 1 mm/s at 2.5 mm cut-off; Reversing Speed: 1 mm/s; ; Measurement Accuracy: < 10%; Repeatability:.
Attributes:
  • MPN: PCE-RT 2000
  • Model: Machines & Power Tools
Product Reviews WRITE A REVIEW

No reviews posted yet.

Online Stores
ADD STORE

Sponsored affiliate online retailers for EAN 4250348717528:

  1. Selectum Store Corp: $1,874.20
  2. JB Tools: $2,309.11
  3. Zoro: $2,367.99
