PCE Instruments Material Tester for Non-Ferrous Metals (PCE-COM 20)
PCE Instruments Material Tester for Non-Ferrous Metals (PCE-COM 20) thumbnail

EAN 4250348716828

EDIT PRODUCT

PCE Instruments Material Tester for Non-Ferrous Metals (PCE-COM 20)

(Write a Review)
Barcode Formats: EAN-13 4250348716828
Category: Tools > Measuring Tools & Sensors > Measuring Wheels
Manufacturer: PCE INSTRUMENTS

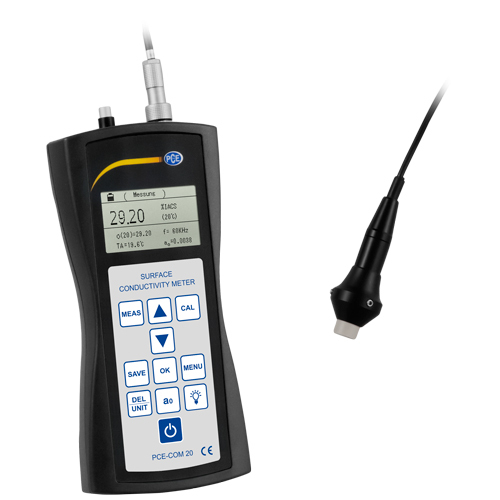

Description:   PCE Instruments Material Tester for Non-Ferrous Metals (PCE-COM 20) is a portable, non-destructive testing (NDT) device designed for measuring the electrical conductivity of non-ferrous metals like aluminum, copper, titanium, and bronze. Ideal for industrial quality control, authenticity testing of coin alloys, and material sorting, this material tester compensates for lift-off effects up to 500 m and adjusts conductivity results to 20C through automatic temperature compensation. . Specifications and Dimensions Operating Frequency: 60 kHz sine wave; Conductivity Range: 0.51% IACS 112% IACS; Resistance Range: 0.015388 3.33333 mm / m; Resolution: 0.01% IACS (up to 51%), 0.1% IACS (51% 112%); Accuracy: 0.5% at 20C, 1% between 0 40C; Lift-off Compensation: 0.5 mm / 0.0197 in; Temperature Range: 0 50C / 32 122F; Automatic Temperature Compensation: Yes, to 20C / 68F; Display: Backlit LCD screen; Menu Languages: English, German, Japanese; Power Supply: Internal rechargeable battery; Probe Diameter: 14 mm / 0.55 in; Memory: Stores up to 500 measurement groups; Data Interface: USB for PC connection; Operating Conditions: 0 50C / 32 122F, 0 95% RH; Dimensions: 220 x 95 x 35 mm / 8.66 x 3.74 x 1.38 in; Weight: 415 g / 1 lb (with probe); ; . Key Features and Benefits Non-destructive eddy current testing for non-ferrous metals; Large measurement range up to 112% IACS or 65 MS/m; Automatic lift-off and temperature compensation; Internal memory stores up to 500 measurements; USB data transfer for further analysis; Rechargeable battery for portable use; Easy-to-read backlit LCD screen; Includes calibration plates for Titanium, Bronze, and Copper; ;.
Attributes:
  • MPN: PCE-COM 20
  • Model: Test Equipment
