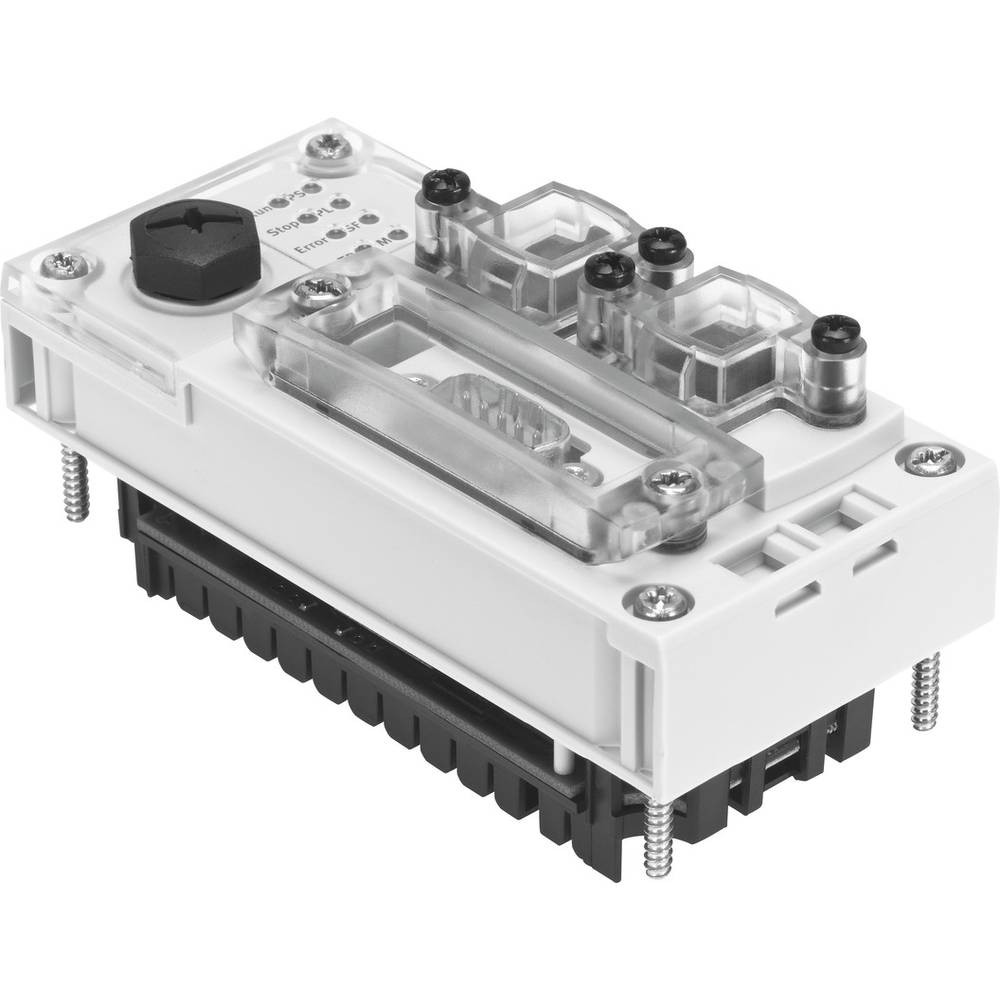

FESTO Controller 3473128 CPX-CEC-C1-V3 1 Pc(s)
FESTO Controller 3473128 CPX-CEC-C1-V3 1 Pc(s) thumbnail

EAN 4052568269777

EDIT PRODUCT

FESTO Controller 3473128 CPX-CEC-C1-V3 1 Pc(s)

(Write a Review)
Barcode Formats: EAN-13 4052568269777
Brand: FESTO
Description:   Additional technical information: Dimensions W x L x H: 50 mm x 107 mm x 55 mm Processing time: Approx. 200 s/1 k instruction Controls: DIL switch for CAN termination Rotary switch for RUN/Stop Control interface: Can bus CPU DATA: 256 MB RAM 32 MB Flash Processor 800 MHz Internal power consumption at operating voltage: Type. 85 mA IP address setting: DHCP About CoDeSys About MMI Ethernet, connector: RJ45 jack 8-pole Ethernet, number: 1 Ethernet, data transfer rate 10/100 Mbit/s. Ethernet, protocols supported: TCP/IP, EasyIP, Modbus TCP Ethernet interface: RJ 45 (female, 8-pin) Fieldbus interface: Can bus Fieldbus interface, connection technology: Plug Sub-D 9-pin* Fieldbus interface, galvanic isolation: Yes Fieldbus interface, transmission rate 125, 250, 500, 800, 1000kbit/s. Adjustable via software Function blocks: Read CPX module diagnostics CPX diagnostic status Copy CPX diagnostic trace and others Device-specific diagnostics: Channel and module-oriented diagnostics Undervoltage/short circuit module Diagnostic memory Total number of axes: 127 Configuration support: CoDeSys V3 Corrosion resistance class KBK: 2 - moderate corrosion stress Storage temperature: -20.. 70 C LED display bus-specific: TP: Link/Traffic LED display product-specific: ERR: PLC runtime error M: Modify/Force active PL: Load supply PS: Electronic supply, sensor supply Run: PLC status SF: System error Stop: PLC status Bit memory: 28 kB retentive data CoDeSys variable concept Nominal operating voltage DC 24 V. Rated operating voltage DC load voltage: Without pneumatics: 18.. 30V 24 V With pneumatic type MIDI/Maxi: 21.6.. 26.4V With type CPA pneumatics: 20.4.. 26.4V With pneumatic type MPA: 18.. 30V Mains failure bridging: 10 ms Parameterization: CoDeSys V3 Product weight: 135 g Programming software: CoDeSys provided by Festo Programming language: According to IEC 61131-3 Ladder diagram (LAD) Statement List (STL) Structured text Function diagram Procedural language Additional CFC Programming, operating language: De, EN Programming, support File handling: Yes Program memory: 16 MB user program Protocol: CoDeSys Level 2 EasyIP Modbus TCP TCP/IP Relative humidity 95% not condensing IP65 rating IP67 Ambient temperature: -5.. 50 C Material housing: PA-reinforced PC Material note: RoHS compliant Additional functions: Diagnostics functions Motion function for electrical drives; Ambient temperature (max.): +50 C; Min. ambient temperature: -5 C.
Attributes:
  • MPN: 3473128
