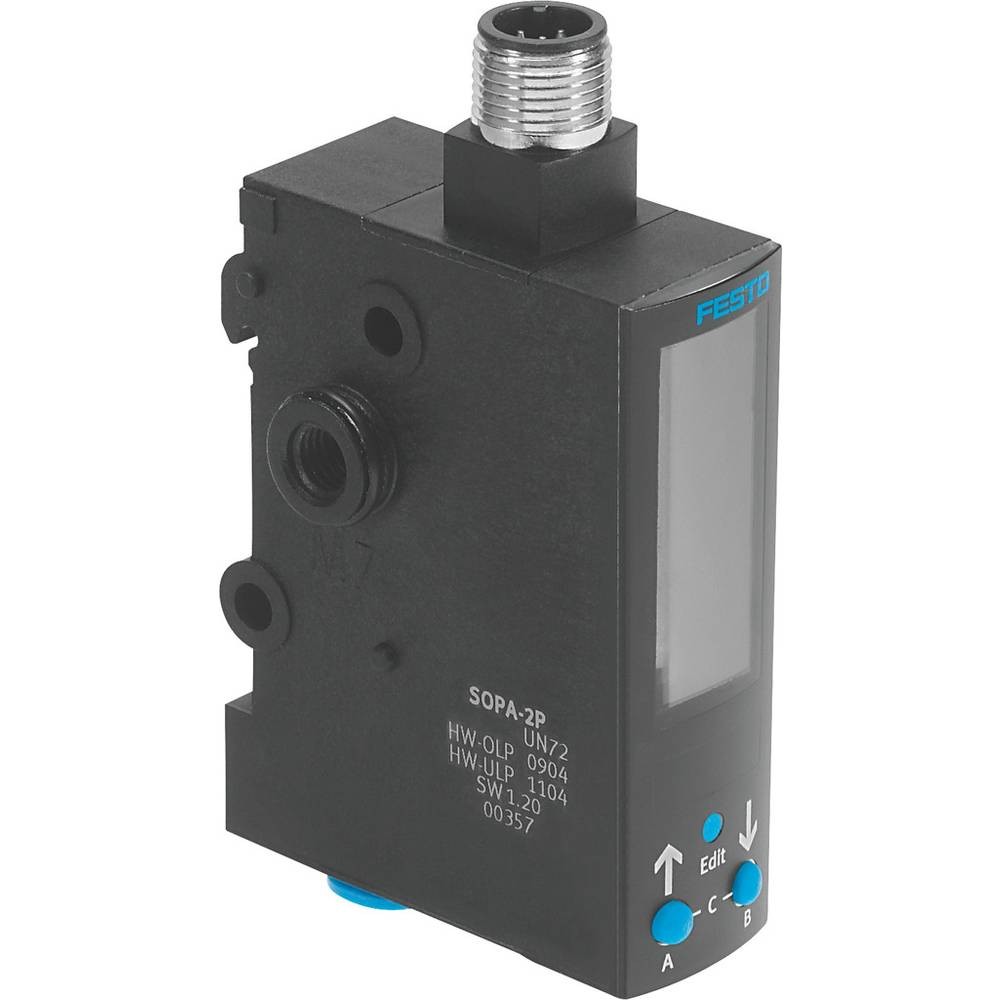

FESTO Air Gap Sensor SOPA-M1-R1-HQ6-2P-M12 552146 QS-6
FESTO Air Gap Sensor SOPA-M1-R1-HQ6-2P-M12 552146 QS-6 thumbnail

EAN 4052568193829

EDIT PRODUCT

FESTO Air Gap Sensor SOPA-M1-R1-HQ6-2P-M12 552146 QS-6

(Write a Review)
Barcode Formats: EAN-13 4052568193829
Brand: FESTO
Description:   Additional technical information: Display type: Light-LCD multi-color Fastening method: Optional: With through hole With DIN rail With wall/surface holder Operating medium: Compressed air according to ISO 8573-1:2010 [7:4:4] Operating voltage range DC: 15.. 30 V CE mark (see declaration of conformity): According to EU EMC directive According to EU-RoHS-RL Setting options: Teach-in Via display and buttons Electrical connection: Connector Round design According to EN 60947-5-2 M12x1 5-pin Detection range: 20.. 200 m Note on operating and control medium: Oiled operation possible (required in further operation) KC-MARK: KC-EMC Short-circuit resistance: Isochronous Tamper protection: Electronic locking Max. output current 100 mA Measuring principle: Pneumatic Pneumatic connection: QS-6 Product weight: 60 g IP65 rating According to IEC 60529 Feed pressure: 0.8.. 1.6 bar Ambient temperature: 0.. 50 C Reverse polarity protection: For all electrical connections Material housing: PA-reinforced Material information: Free of copper and PTFE Complies with RoHS Repeat accuracy switching point: 2.5 m detection range 30 m to 150 m 5 m detection range 20 to 200m Approval: RCM Mark C UL us - Recognized (OL); Ambient temperature (max.): +50 C; Connection (pneumatics): QS-6; IP rating: IP65; Max. operating pressure: 1.6 bar; Min. ambient temperature: 0 C; Operating medium: Compressed Air; Operating pressure (min.): 0.8 bar; Type: 552146; Weight: 60 g.
Attributes:
  • MPN: 552146
